Have you seen such a tracking bracket?

Data:2021-12-15

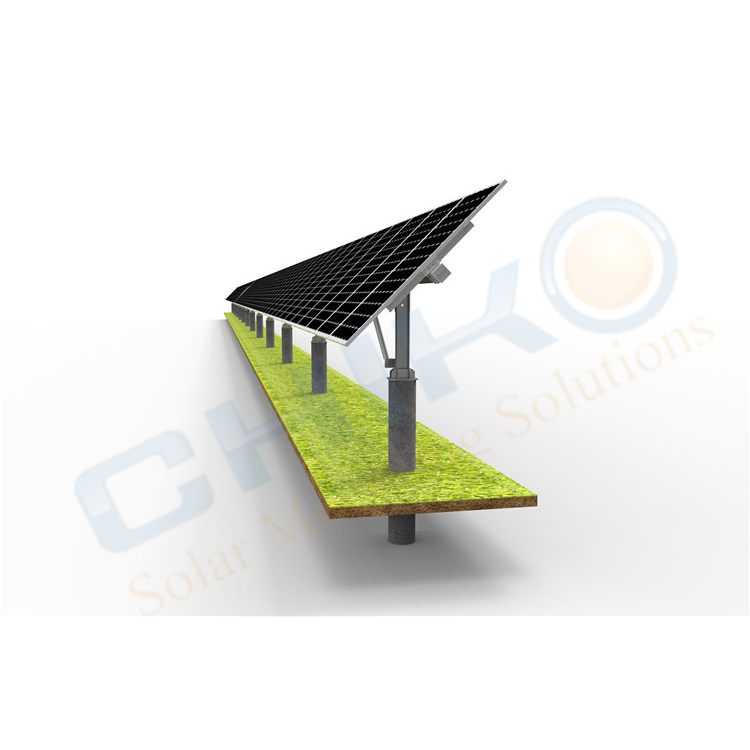

Single-row tracking solar mounting system

√. Drive device: 24V rotary reducer drive;

√. Square or regular octagonal steel pipes have better bending and torsion resistance, and it is also easier to install;

√. Dampers are installed on both sides to reduce wind resonance and eliminate distortion.

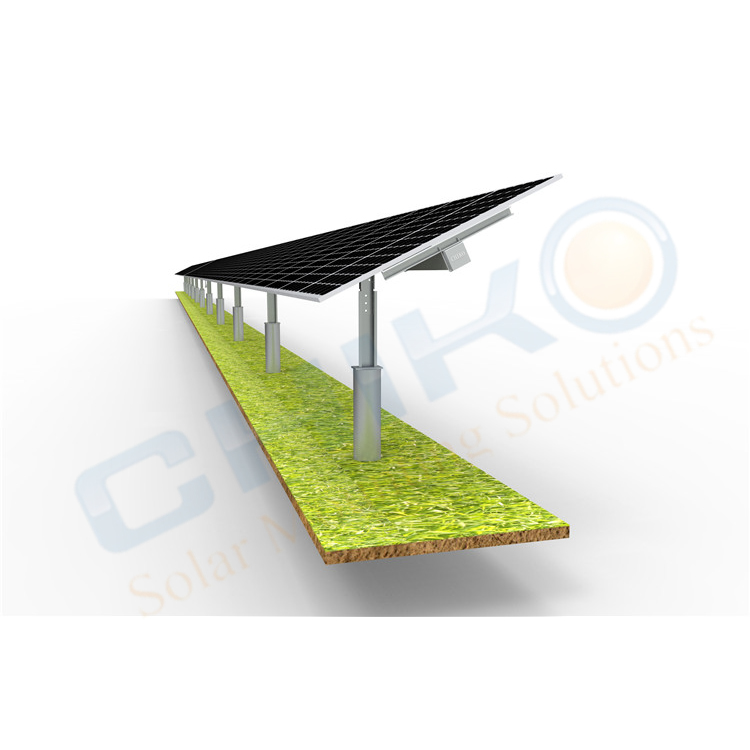

Double row tracking system

√. Drive device: 24V rotary reducer double-point drive;

√. Install the reducer at both ends to reduce the torsional deformation of the main shaft and make the structure more stable;

√. When the wind load is applied, the wind pressure resonance is reduced, and the wind resistance is better;

√. Reduce the motor load, the power is safer and more stable.

Innovation
⊙High durability and high-quality materials.
⊙Minimum material and installation cost.
⊙Ideal shape of load-bearing column.
⊙A few accessories are needed to install the module.

Excellent design
⊙Provide statics analysis of different installation environments
⊙Free design service of installation plan.
⊙All stability tests are carried out in accordance with current standards.

Longest service life
⊙High corrosion resistance, no additional treatment is required.
⊙Anodized material, durable.
⊙10-year quality warranty and 30-year service life.

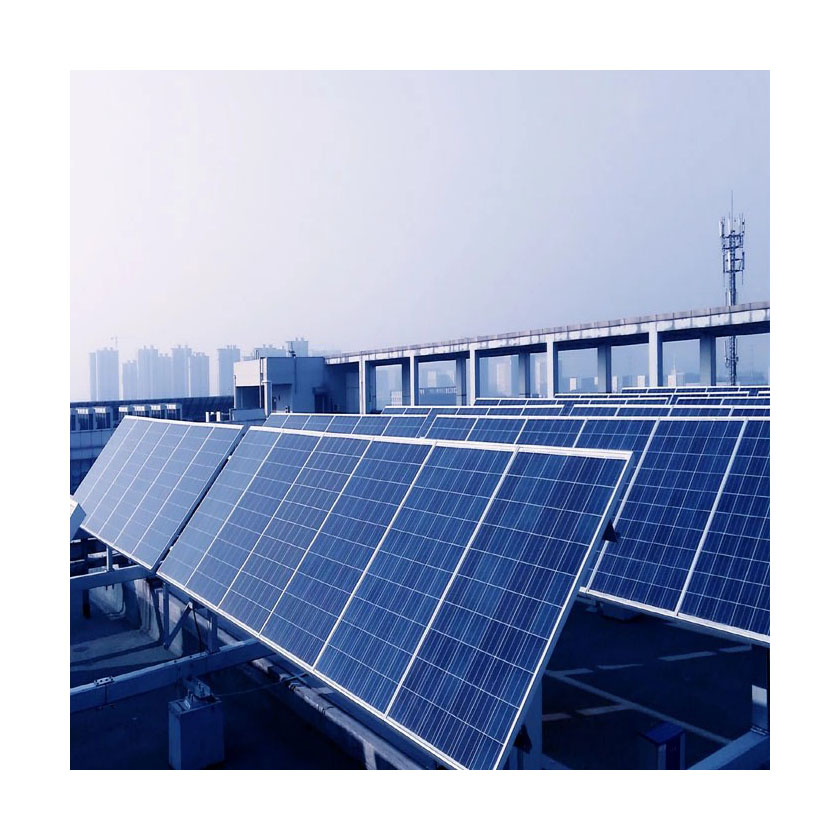

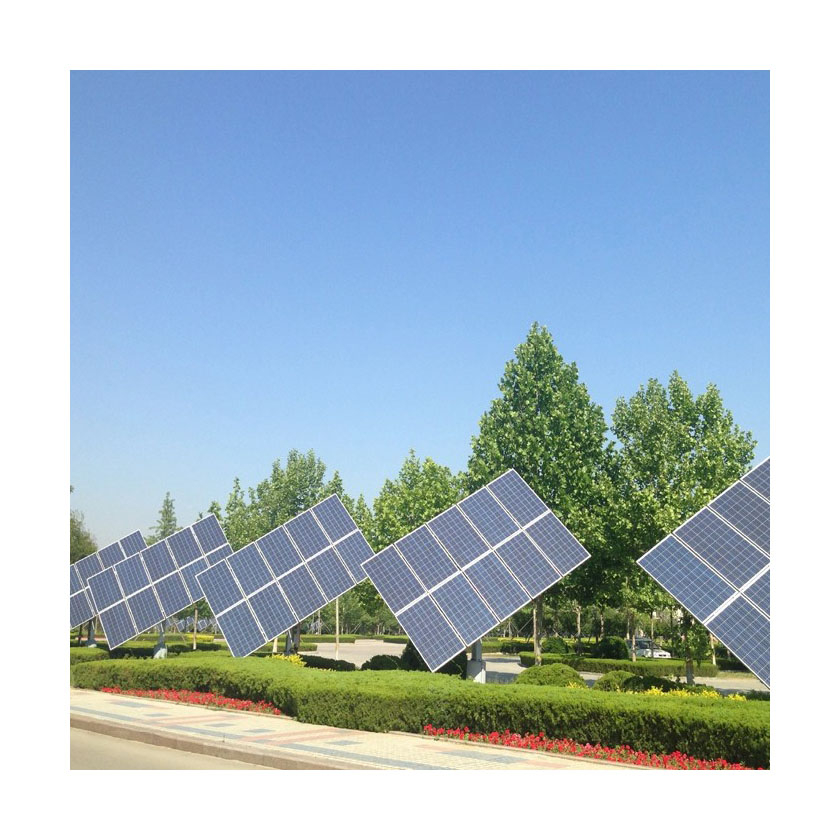

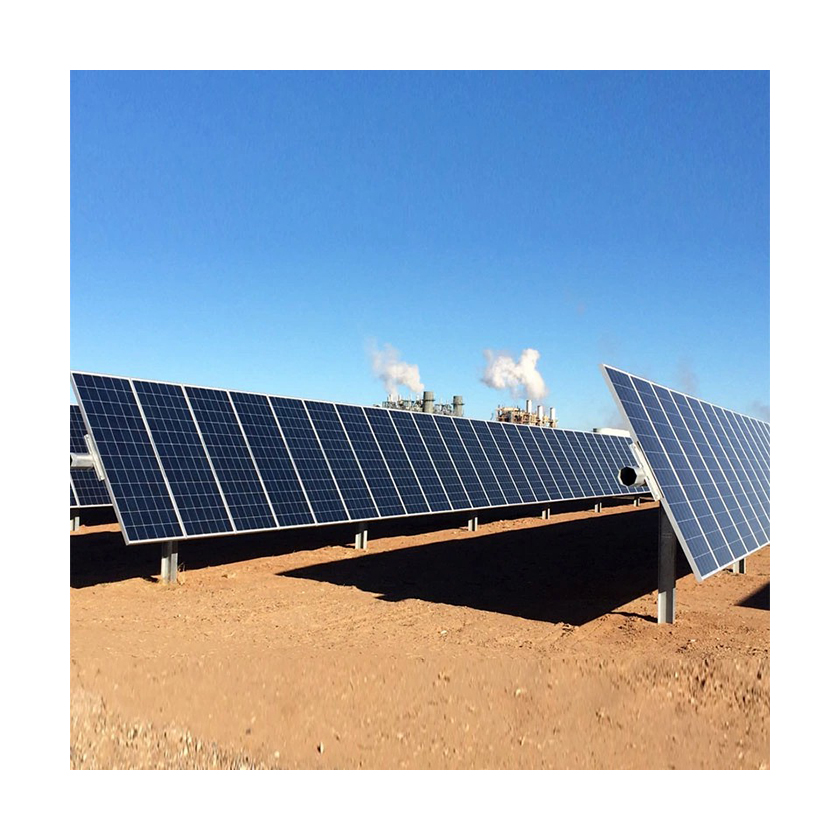

Appreciation of Tracking Bracket Case

So, is such a bracket installation really safe?

CHIKO Solar has been focusing on manufacturing and designing solar bracket systems for more than 10 years. CHIKO products have been installed and used in more than 60 countries and regions, with a total installed capacity of more than 8GW; all projects will be officially accepted after the completion of construction The team has completed the acceptance, and is now officially put into operation.

In the selection of materials, CHIKO is based on the principle of highest quality. The bracket is made of high-quality main material and high-grade anodized aluminum AL6500-T5, and the surface is anodized 12-15 MIC. The excellent anti-corrosion and anti-rust performance guarantees its 30-year service life; at the same time, The lightweight feature of aluminum reduces the roof load, making it safe and reliable. The maximum wind speed can bear 60m/s, and the snow load capacity can reach 1.4KN/㎡.

Finally, all stent solutions of CHIKO Solar are the results of checking calculations based on on-site working conditions. CHIKO ’s advanced technical team analyzed the structural form of the building, combined with the arrangement of the photovoltaic matrix and the photovoltaic modules, and gave various feasible support arrangements to determine the most efficient, convenient, safe and reliable solution.

CHIKO solar more efficient and flexible solar mounting system solution waiting for you here! Contact Us !

Above news from CHIKO Sales & Marketing department
Add: No 680 Xingwen Rd. Jiading dist. Shanghai 201801 China
Email: Chiko@Chikolar.com
Website: http://www.chikolar.com
Fax : +86 (21)59972938
Phone: +86(21) 59972267 59973712 59973713--811
