Do you know how to install such metal roof solar mounting system?

Data:2021-12-13

The main types of color steel tiles are angular, vertical seam, trapezoidal, etc. There are waterproof design fixture installation methods that do not damage the original building, and there are also drilling types that pursue the most stable installation effect and use accessories to connect to the roof purlins.

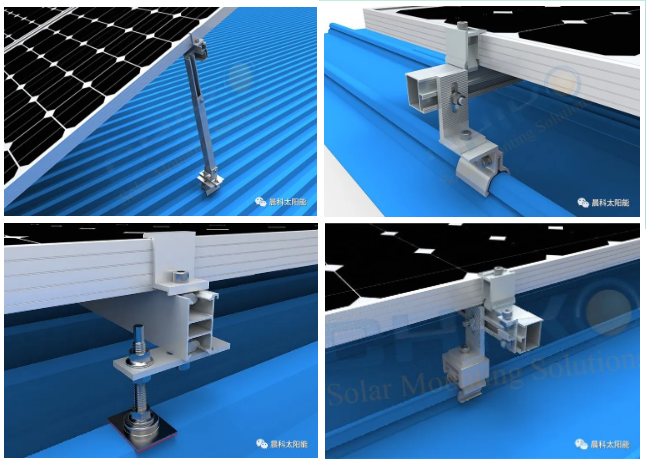

In our impression, the installation method of the common metal roof solar mounting system may be like this:

Do you know how to install such metal roof solar mounting system?

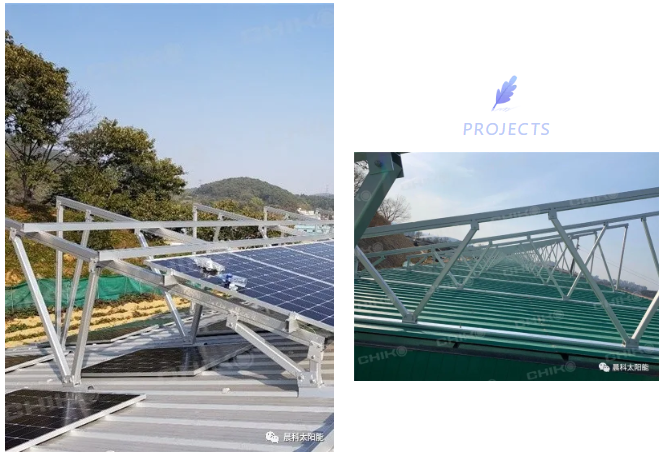

So, have you seen this kind of color steel tile installation?

The project in the picture is located on a tin roof in South Korea and uses the T2VC series of CHIKO solar bracket.

Due to the influence of climatic conditions and geographical location in South Korea, most solar roof installations require high angles to meet the maximum light conditions to improve power generation efficiency. Therefore, most of the tin house photovoltaic projects completed in South Korea have adopted this installation method to achieve the best installation angle to increase power generation. CHIKO T2VC series uses steel beams to reinforce the roof during roof installation to increase the force-bearing area; at the same time, connectors are used to connect the roof truss and purlins, so that the force is distributed to the roof truss and purlins, reducing the roof load to ensure its safety sex.

All the bracket products of CHIKO are highly pre-assembled before leaving the factory, so that there is no need for on-site cutting and drilling, which saves installation time and labor costs.

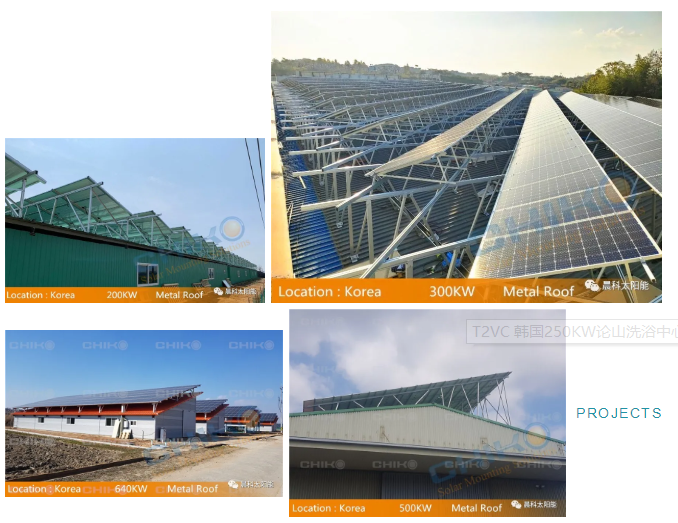

Appreciation of CHIKO's 2019 Korean classic cases:

We all know that roof trusses, purlins and roof panels are important components of color steel roofs. The installation method of color steel plate has a direct and important relationship with the load-bearing capacity of roof trusses, purlins and roof panels. The quantity and size of various connectors and fasteners can be obtained through static calculation analysis and design structure.

So, is such a solar panel bracket really safe?

CHIKO Solar has been focusing on manufacturing and designing solar mounting structure for more than 9 years. CHIKO products have been installed and used in more than 60 countries and regions, with a total installed capacity of more than 8GW; South Korea adopted CHIKO T2VC series photovoltaic brackets in 2019 There are more than 20 projects, and the installed capacity is as much as 10MW. All the projects are checked and accepted by the official acceptance team after the completion of the construction, and they are now officially put into operation.

In the selection of materials, CHIKO is based on the principle of highest quality. The bracket is made of high-quality main material and high-grade anodized aluminum AL6500-T5, and the surface is anodized 12-15 MIC. The excellent anti-corrosion and anti-rust performance guarantees its 30-year service life; at the same time, The lightweight feature of aluminum reduces the roof load, making it safe and reliable. The maximum wind speed can bear 60m/s, and the snow load capacity can reach 1.4KN/㎡.

Finally, all stent solutions of CHIKO Solar are the results of checking calculations based on on-site working conditions. CHIKO’s advanced technical team analyzed the structural form of the building, combined with the arrangement of the photovoltaic matrix and the photovoltaic modules, and gave various feasible support arrangements to determine the most efficient, convenient, safe and reliable solution.

CHIKO solar more efficient and flexible solar mounting system solution waiting for you here! Contact Us !

Above news from CHIKO Sales & Marketing department
