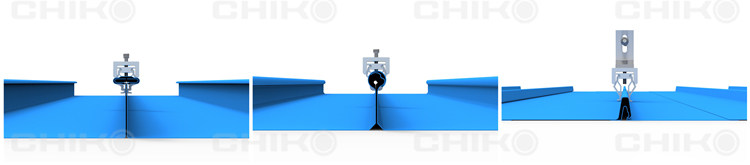

Non-penetrating rooftop mounting refers to the ability to mechanically attach a clamp to a standing seam roof by gripping the seam in such a way that there is no penetration to the panel material. The best method for standing seam clamp attachment is Hanger bolt Solar Mount
Using Hanger Bolt Solar Mounts is ill-advised as such a screw point cuts through the paint and protective coating of standing seam panels, causing corrosion and voiding warranties.
In the metal roofing construction industry, mounting ancillary items is often a convenient and necessary aspect of desired performance. Obviously, the best way to maintain the integrity of a metal roof is to allow it to function only as a roof. But various rooftop utilities such as, HVAC, piping, walkways, vents, satellite dishes, snow retention, solar arrays, signage, fall protection, lightning protection, etc. all serve critical purposes and must attach to the roof.
standing seam roofing is to do the roof no harm – so foremost, that means don’t penetrate it. But when it comes to standing seam metal roofs, mounting rooftop equipment can often result in violated warranties and roof damage if not done correctly. Often, the tendency of trades is to anchor the item to the structure through the roof. But doing so threatens weather integrity and also violates the membrane’s thermal-cycling behavior by pinning the panel to the structure. The point of attachment will soon fatigue and fail due to thermal expansion. But the right non-penetrating mounting solution provides secure attachment without any penetration whatsoever—and without violating freedom of thermal cycling.

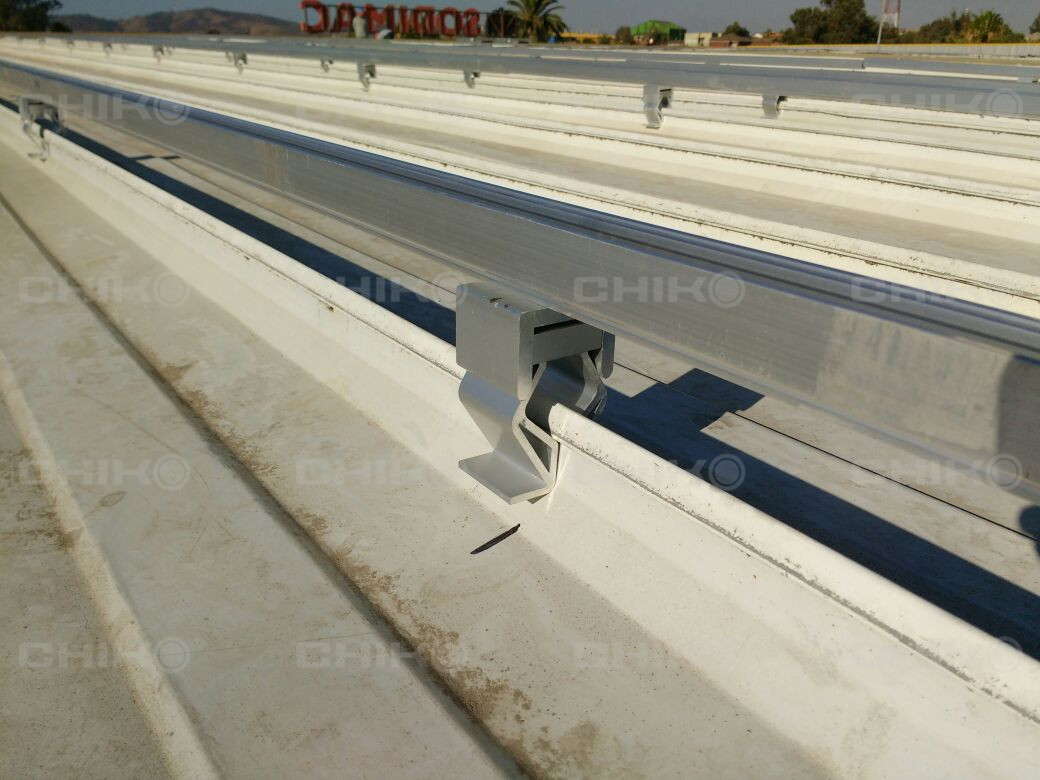

The CHIKO E-Lock metal roof solar bracket system is used to fix the top with a bolt, which can improve the installation efficiency. Secondly, all components of the E-lock series are highly pre-assembled, without on-site cutting and welding, saving time and labor costs. It is more worth mentioning that the fixture of the E-lock solar mounting system is only stuck on the convex seam and will not damage the surface of the plate. The main materials used are high-grade anodized aluminum 6005-T5 and SUS304 and Q316 parts, which are durable, anti-corrosion and anti-rust, and the service life can reach 30 years!
