Share: Types of roof brackets

Data:2022-02-23

Conventional roof solar mounting system types can be divided into several categories: color steel tile roof solar mounting, concrete roof solar structure, ceramic tile roof solar bracket, TPO flexible roof solar mounting and so on.

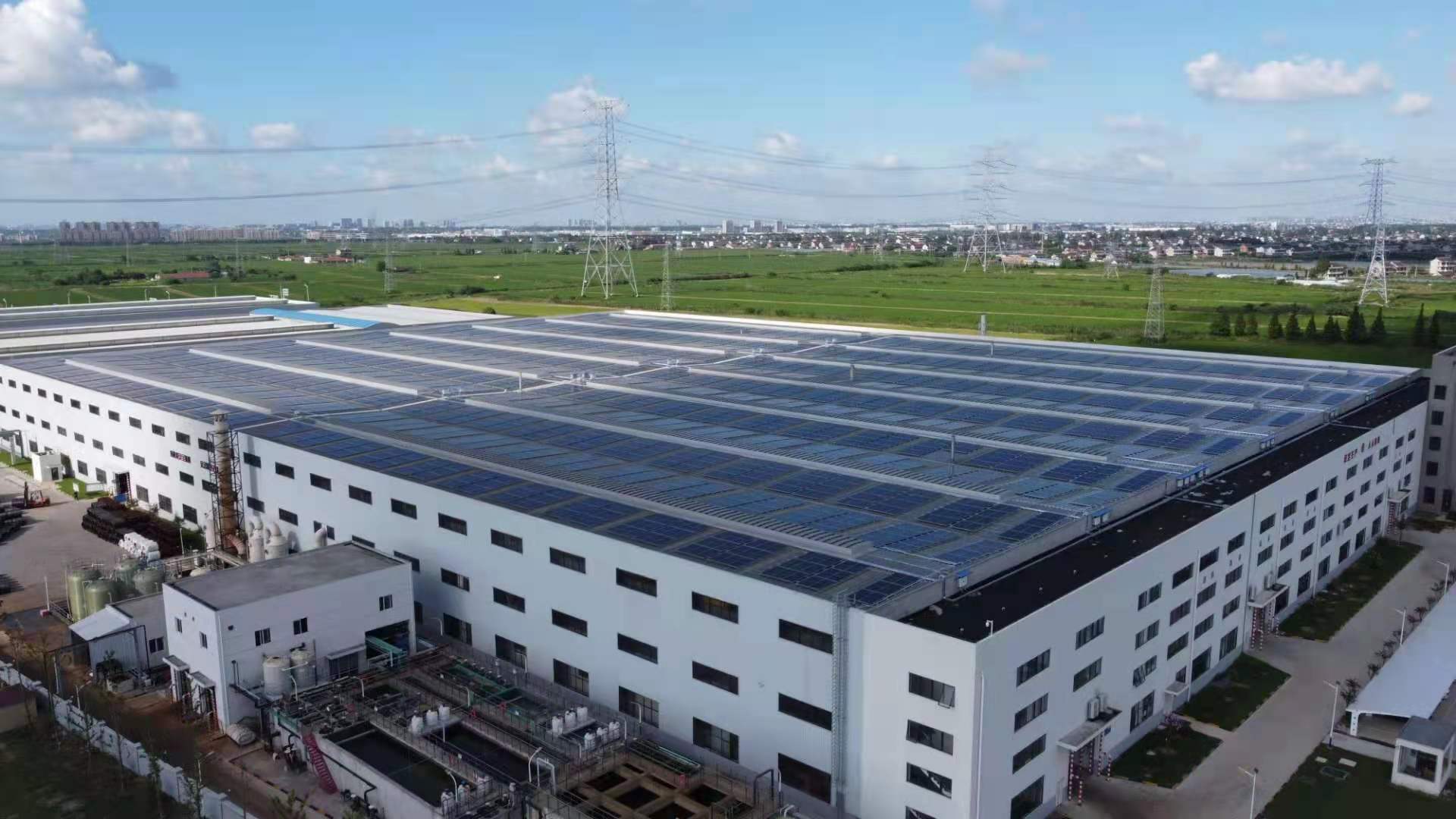

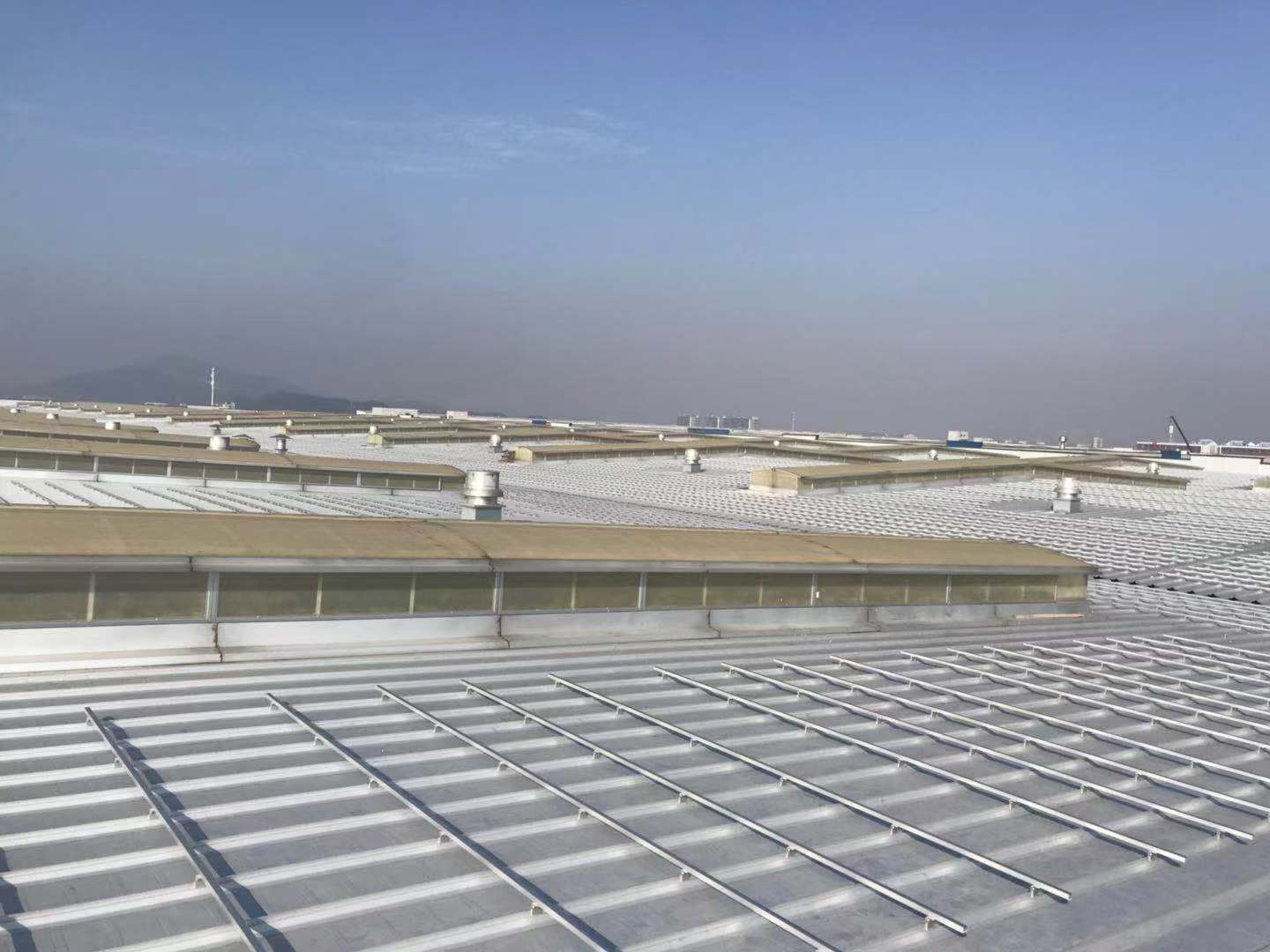

Color steel tile roof solar brackets can be divided into various types of fixture structures such as angle relaxation, upright seam, trapezoid, etc. according to the different types of color steel tile roof solar mounting. The fixture styles used for each roof type are different, and the upper beam structure is basically the same. Limited by the roof load of color steel tiles, aluminum alloy brackets are generally used to reduce the roof load.

Concrete roof solar mounting systems are similar to ground fixed solar bracket, and are generally installed in the form of concrete foundations or concrete ballast.

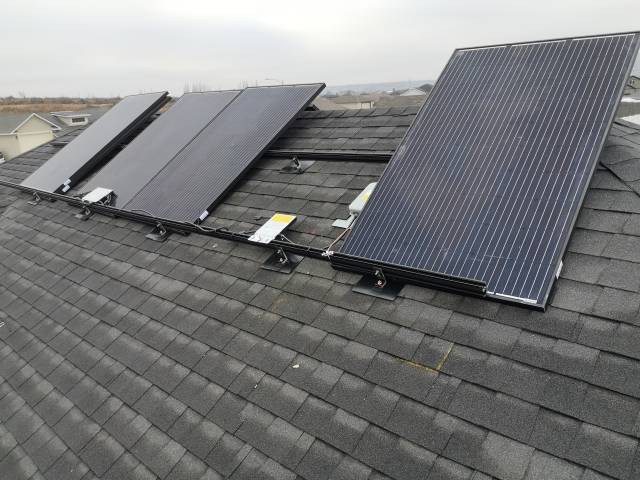

Most of the ceramic tile roof brackets are installed in the form of hooks, and the upper beam structure is basically the same as the conventional color steel tile roof brackets.

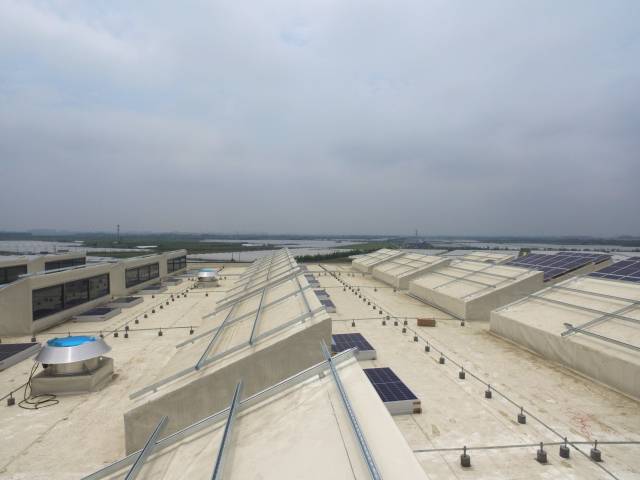

TPO flexible roof solar structure currently has several installation methods: perforated type, ballast type, and welding type, and has particularly high requirements for waterproofing. For such flexible roof solutions, there are very few domestic manufacturers currently providing solutions, and the cost per watt has remained high. It can provide a solution that neither punches holes nor uses ballast to reduce the weight of the roof.

Except for the concrete roof solar mounting systems, other superstructures are less affected by the wind pressure, snow pressure, component specifications and square array arrangement at the project site, and the beam rails can basically be used in general.

Chiko Solar has been focusing on manufacturing and designing solar mounting systems for more than 10 years. Chiko products have been installed and used in more than 60 countries and regions, with a total installed capacity of more than 8GW; all projects are subject to official acceptance after construction is completed. The team has completed the acceptance and has been officially put into operation.

In terms of material selection, Chiko adheres to the principle of the highest quality. The bracket adopts high-quality main material, high-grade anodized aluminum AL6500-T5, and the surface adopts anodized 12-15MIC. Its excellent anti-corrosion and anti-rust performance ensures its 30-year service life; The lightweight characteristics of aluminum reduce the roof load, making it safe and reliable. The maximum wind speed can carry 60m/s, and the snow load capacity can reach 1.4KN/㎡.

Finally, all support solutions of Chiko Solar are the result of checking and calculation according to the on-site working conditions. Chiko's advanced technical team analyzes the structural form of the building, combines the arrangement of the solar matrix and the verification of solar modules, gives various feasible support arrangements, and determines the most efficient, convenient, safe and reliable solution. .

Chiko Solar's various efficient and flexible solar mounting solutions are waiting for you here! Welcome to consult!
