Application of flexible roof (TPO) solar photovoltaic bracket

Data:2022-01-24

Distributed roof solar mounting power stations have developed rapidly. Many developers, investors, design units, general contracting units and construction units are very unfamiliar to the flexible roof (also known as TPO roof and membrane roof) in the process of evaluation, design and construction, and they do not know how to start.The following is a general introduction of this roof solar mount design scheme and construction scheme.

Flexible roof is generally based on the color steel tile structure roof or the concrete structure roof. In order to solve the problems of waterproof and aging, the thermal insulation layer and the TPO material layer with a long life are added on the basis of the structural layer.It is characterized by the connection between the solar bracket and the roof, protecting the TPO waterproof layer of the roof, and ensuring no roof leakage after the bracket installation is the key point and difficulty of the project.

According to the experience, in the waterproof treatment in the installation process, only the TPO raw material solar mounting system manufacturers or the certified construction manufacturer can do the waterproof, otherwise the TPO material manufacturer cannot provide a warranty.

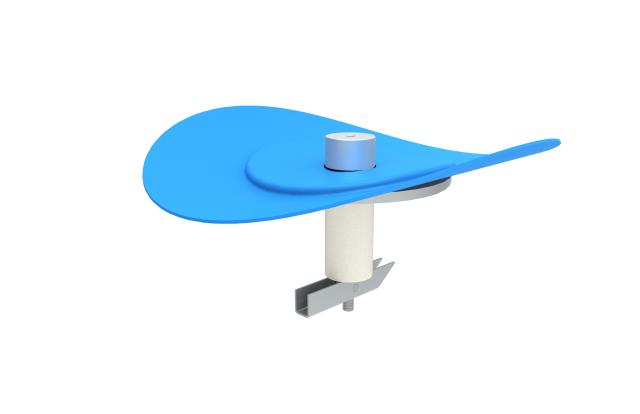

The CHIKO SL base is located

pplication of flexible roof (TPO) solar photovoltaic bracket

Feature

· Material is of aluminum alloy AL6005-T5
· Accessories are made of stainless steel 304
· Simple construction, short construction period and high efficiency

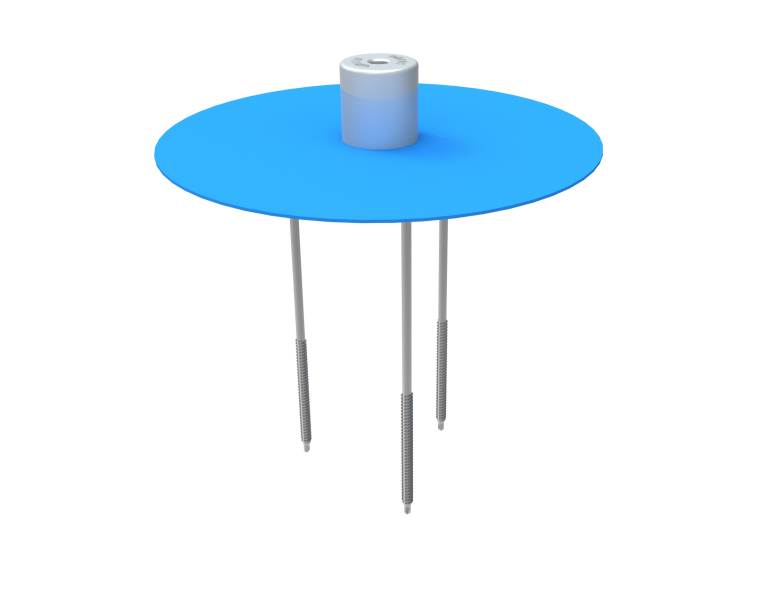

The CHIKO ST base is located

Feature

· Material is of aluminum alloy AL6005-T5
· Accessories are made of stainless steel 304
· Simple construction, short construction period and high efficiency

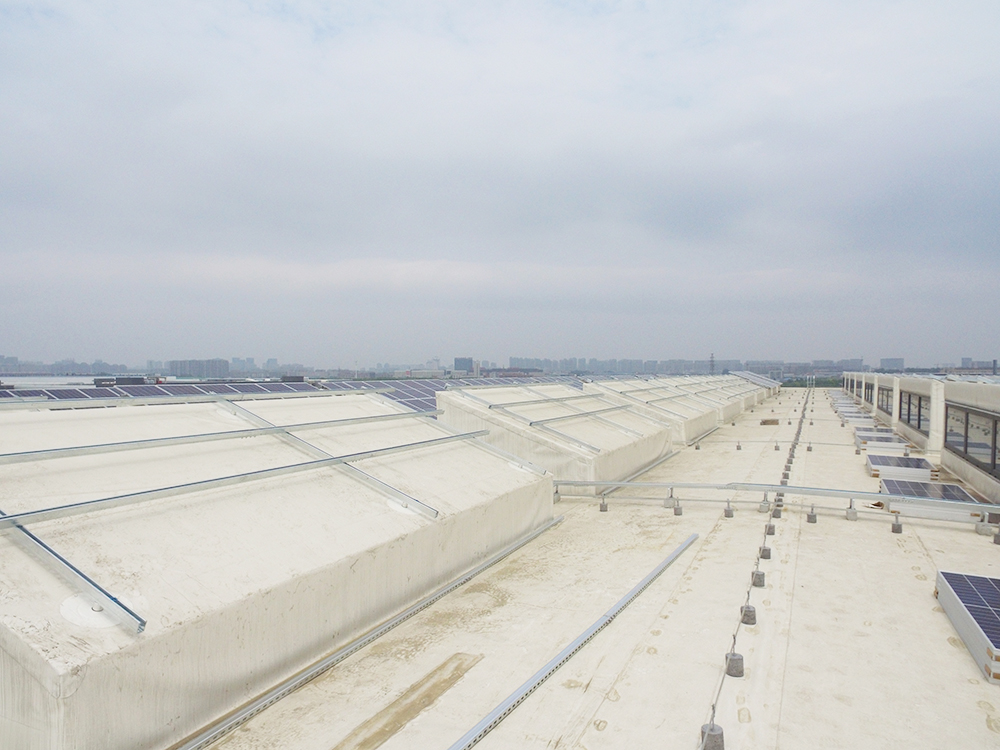

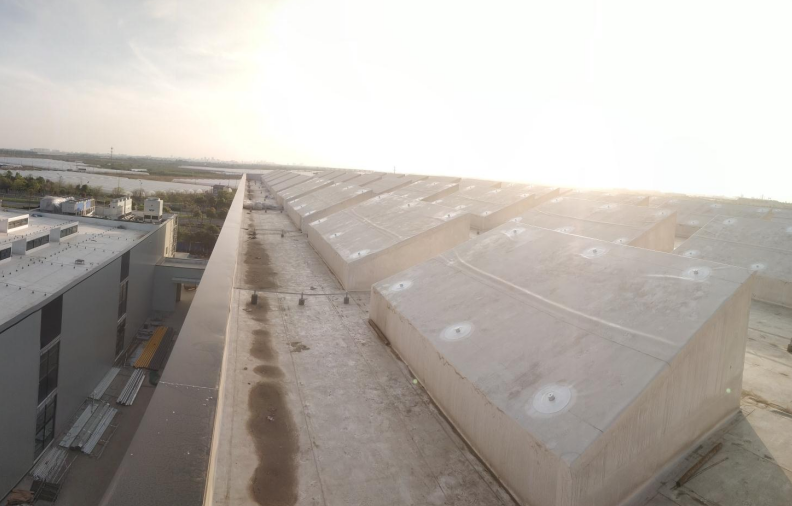

Case display

In addition, CHIKO has a professional construction team to provide installation and site guidance services for the ST / SL base.

CHIKO's solar bracket is not difficult to install. It is suitable for all types of modules, and it is quick and easy to install. CHIKO will design corresponding safe design solutions for different projects.

CHIKO Solar has been focusing on manufacturing and designing solar mounting systems for more than 10 years. CHIKO products have been installed and used in more than 60 countries and regions, with a total installed capacity of over 8GW; all projects will be officially accepted after the completion of construction The team has completed the inspection and acceptance, and is now officially put into operation.

In the selection of materials, CHIKO adheres to the principle of highest quality. The bracket uses high-quality main material and high-grade anodized aluminum AL6500-T5, and the surface is anodized 12-15MIC. The excellent anti-corrosion and anti-rust performance guarantees its 30-year service life; at the same time, The lightweight feature of aluminum reduces the roof load, making it safe and reliable. The maximum wind speed can bear 60m/s, and the snow load capacity can reach 1.4KN/㎡.

Finally, all stent solutions of CHIKO Solar are the results of checking calculations based on on-site working conditions. CHIKO’s advanced technical team analyzed the structural form of the building, combined with the layout of the photovoltaic matrix and photovoltaic modules to perform verification, and gave various feasible support arrangements to determine the most efficient, convenient, safe and reliable solution.

CHIKO solar more efficient and flexible solar mounting system solution waiting for you here! Contact Us !

Above news from CHIKO Sales & Marketing department
