Do you know the installation method of such flat roof photovoltaic brackets?

Data:2022-01-12

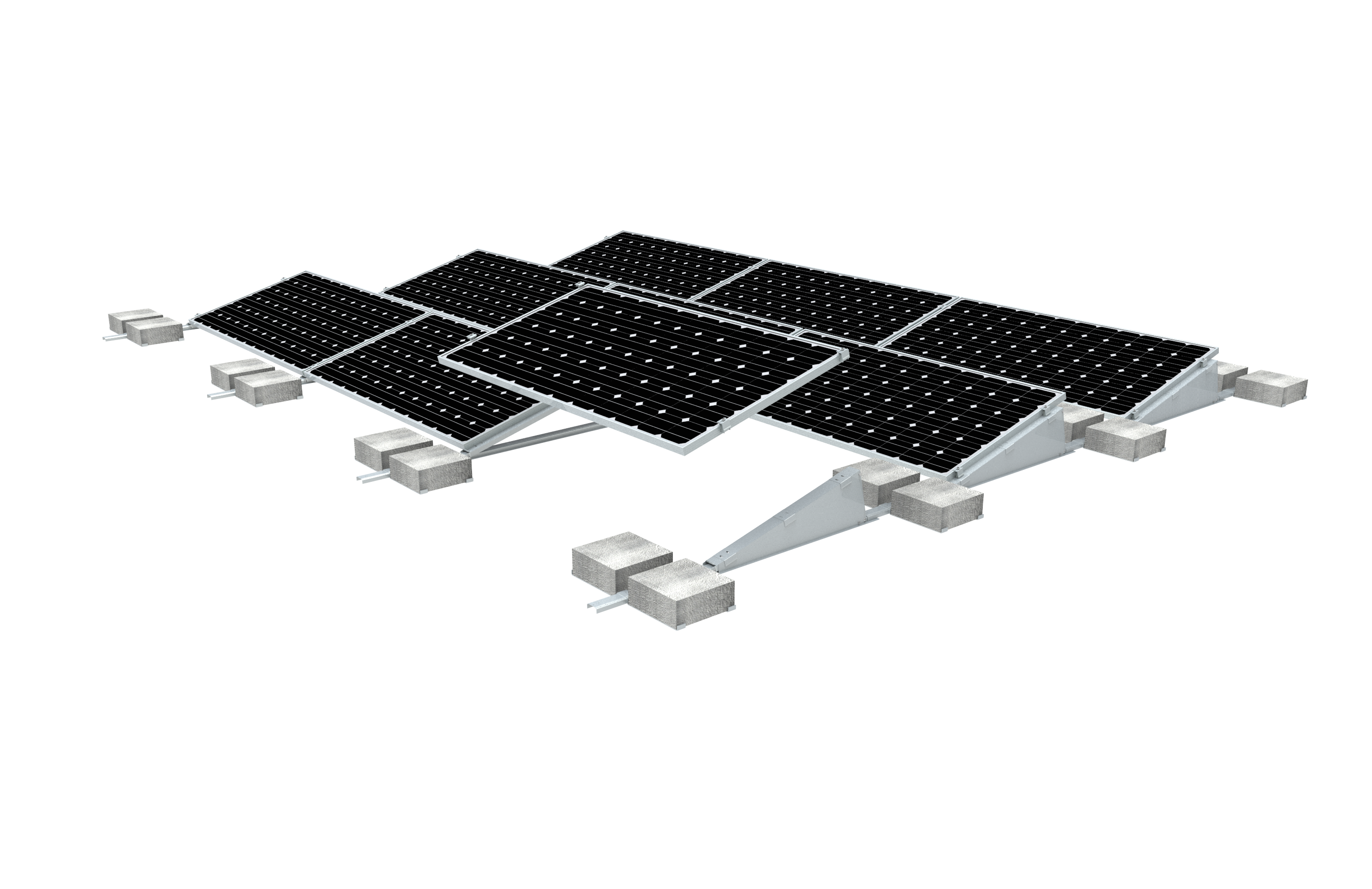

Ballast I-2 Solar Mount

·Most universal for commercial flat roofs
·1 panel Landscape orientation & East to West
·10°,15°,20°,25°,30°tilted angle available
·Various modules configurations are possible
·Made of AL 6005-T5
·Highly class anodizing on surface treatment
·Pre-assembly and foldable
·Non-penetration to roof and light weight roof loading

Do you know the installation method of such flat roof photovoltaic brackets?

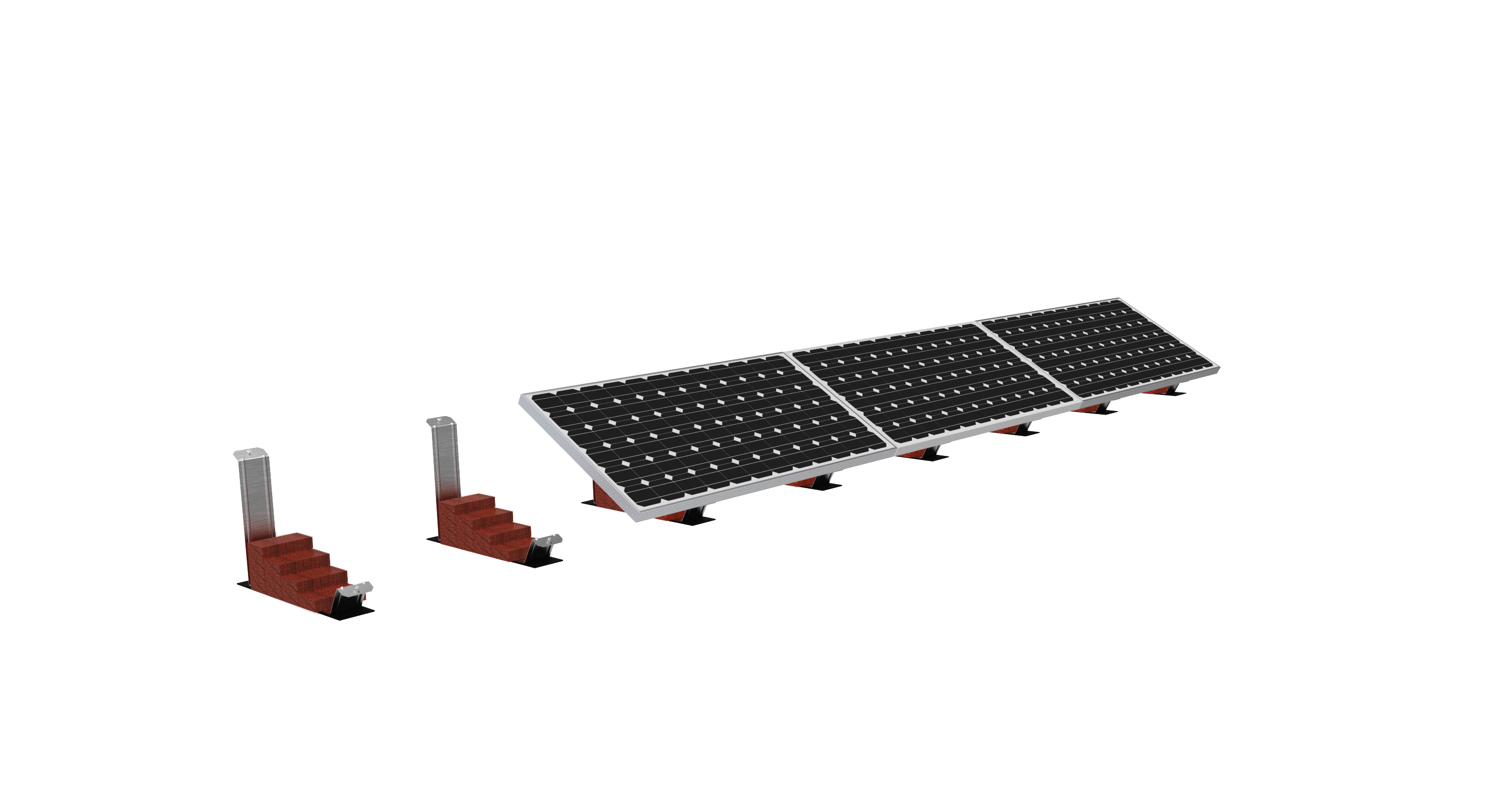

Ballast III Photovoltaic bracket

·Most cost-effective for commercial flat roofs
·1 panel Landscape orientation
·10°,15°,20°,25°,30°tilted angle available
·Various modules configurations are possible
·Made of Aluminum
·1 step installation
·Non-penetration to roof and light weight roof loading

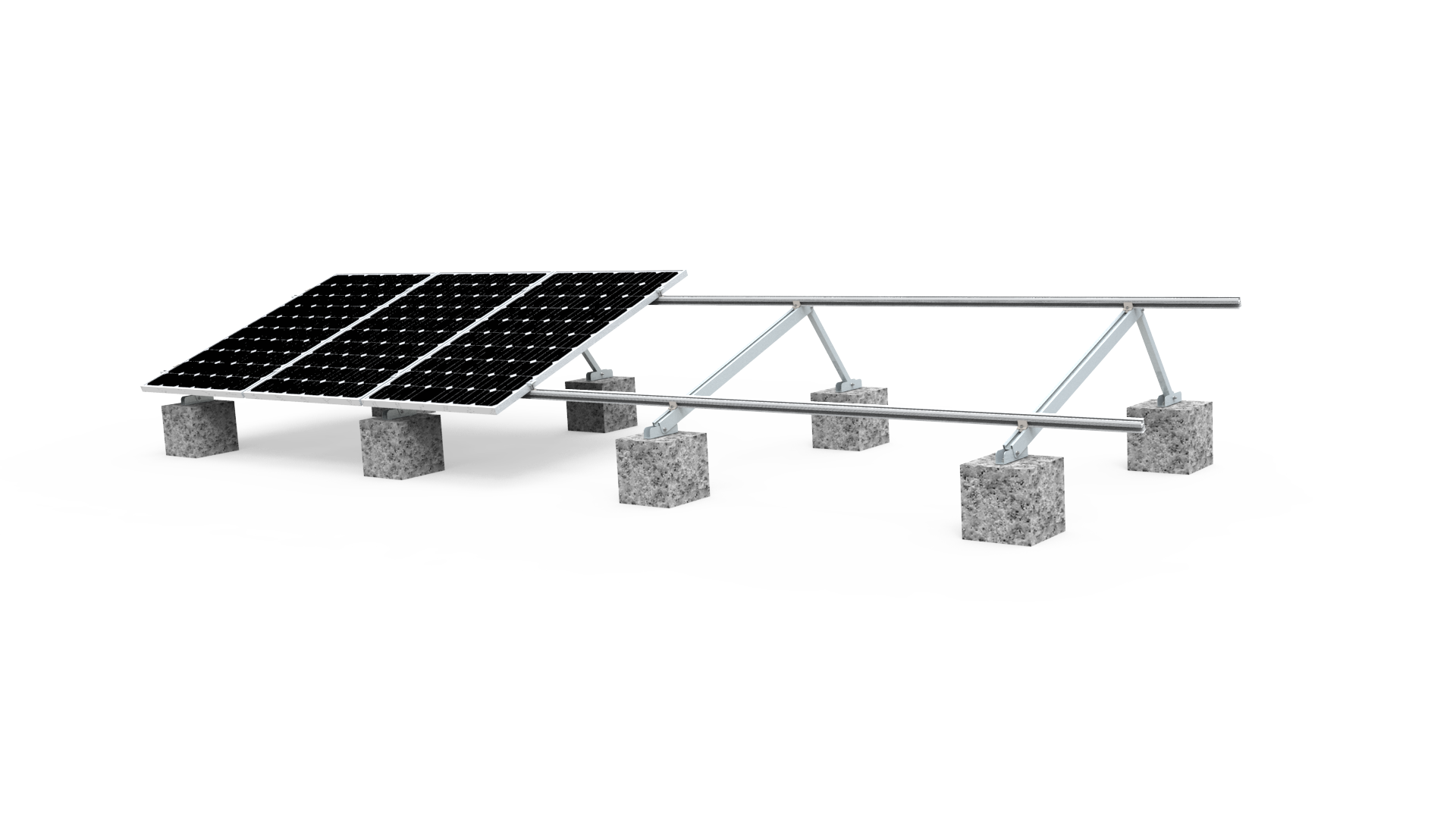

Adjustable Aluminum Triangular Mount

·Most cost-effective for commercial flat roofs
·1 panel Portrait orientation
·10°-30°tilted angle adjustable
·Made of AL 6005-T5
·Highly class anodizing on surface treatment
·Pre-assembly and foldable
·Non-penetration to roof and light weight roof loading

The Chiko Flat Roof Solar Panel Mounting System is made of extruded aluminium profiles and provides a lightweight solution for almost all flat roof solar power plant constructions. The system is designed with just one tool and requires only a few components for quick fixation. Various configurations of solar panels can be built for south facing roofs, north-south roofs and east-west roofs to achieve the best solution.

⊙ Suited for both framed and laminates modules
⊙ Module inclination angle can be 10°,15°,20°,30° or customized degree.
⊙ Set on all standard types flat roof, concrete, membranes, bituminous sheeting roofs etc., and allowed max slope of 5° of the flat roofs.
⊙ Using the same parts to build typically South setup, North-South setup and East-West setup.
⊙ Low point loads due to evenly spread load distribution on the roofs and aerodynamic design
⊙ The wind deflector optional to cool down the temperature of solar module to improve the yield of solar system.
⊙ Rapid installation thanks to preassembly console and low number of individual parts
⊙ Only one assembly tool necessary due to the pop rivet connection No roof penetration
⊙ Simply maintenance as the PV modules are quickly and easily accessible at all times.

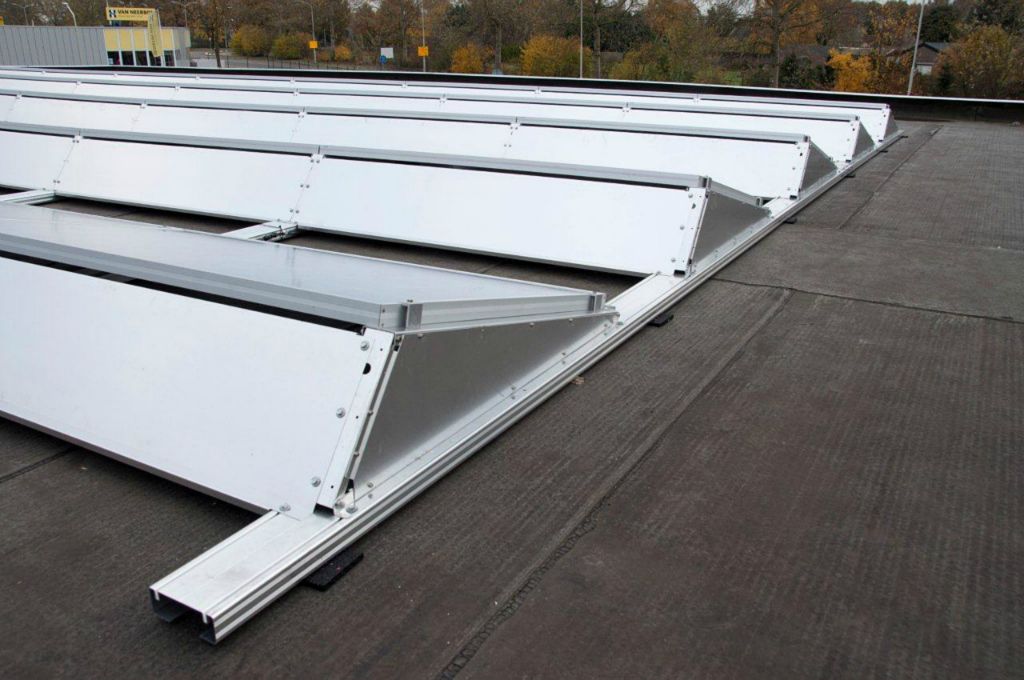

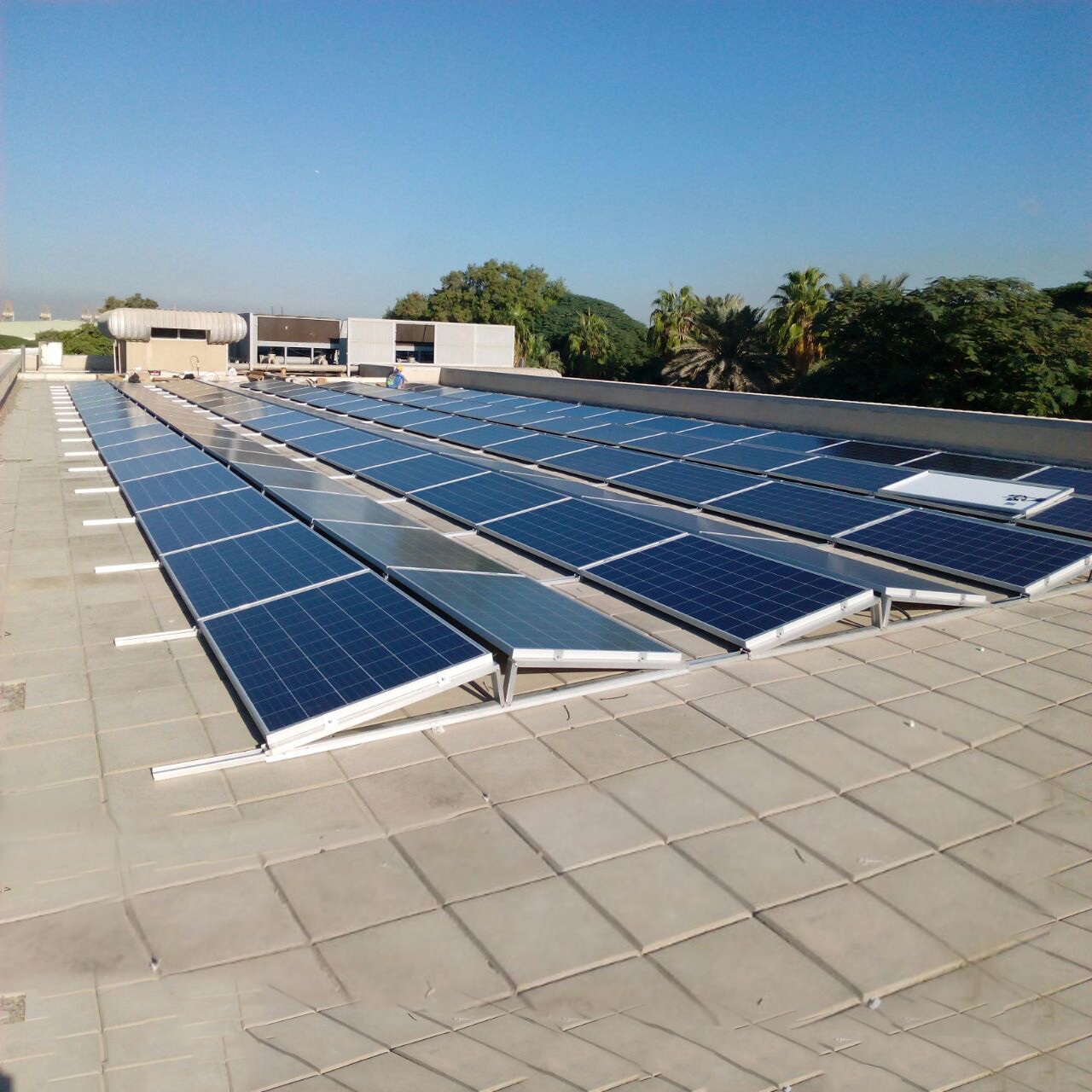

Appreciation of the case of flat roof bracket

So, is such a bracket installation really safe?

CHIKO Solar has been focusing on manufacturing and designing solar mounting systems for more than 10 years. CHIKO products have been installed and used in more than 60 countries and regions, with a total installed capacity of over 8GW; all projects will be officially accepted after the completion of construction The team has completed the inspection and acceptance, and is now officially put into operation.

In the selection of materials, CHIKO adheres to the principle of highest quality. The bracket uses high-quality main material and high-grade anodized aluminum AL6500-T5, and the surface is anodized 12-15MIC. The excellent anti-corrosion and anti-rust performance guarantees its 30-year service life; at the same time, The lightweight feature of aluminum reduces the roof load, making it safe and reliable. The maximum wind speed can bear 60m/s, and the snow load capacity can reach 1.4KN/㎡.

Finally, all stent solutions of CHIKO Solar are the results of checking calculations based on on-site working conditions. CHIKO’s advanced technical team analyzed the structural form of the building, combined with the layout of the photovoltaic matrix and photovoltaic modules to perform verification, and gave various feasible support arrangements to determine the most efficient, convenient, safe and reliable solution.

CHIKO solar more efficient and flexible solar mounting system solution waiting for you here! Contact Us !

Above news from CHIKO Sales & Marketing department
Add: No 680 Xingwen Rd. Jiading dist. Shanghai 201801 China
Email: Chiko@Chikolar.com
Website: http://www.chikolar.com
Fax : +86 (21)59972938
Phone: +86(21) 59972267 59973712 59973713--811
