Alu triangle system

CHIKO Solar T
Rail Solar Tripod

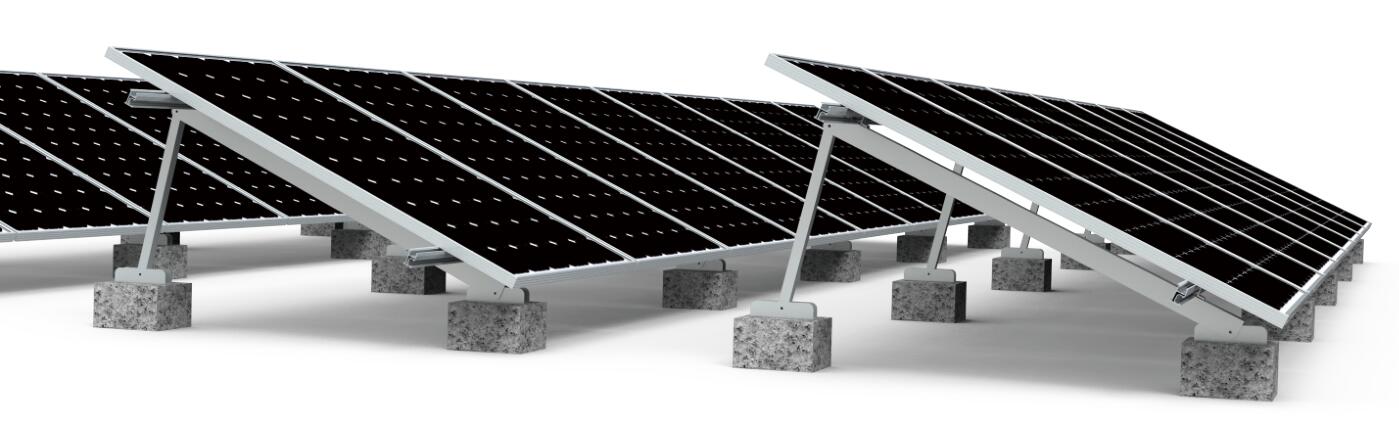

Made by Extruded aluminum, Chiko T Rail Solar Tripod provide a universal solution for multitude of different flat roof PV installations. The system is highly pre-assembled to minimal the cost on installation and max convenience on warehousing.

Features

Universal

⊙ One Tripod will fit multitude of different flat concrete roof PV installations, professional design terminate future temporary site fabricating structures using aluminum profile.
⊙ You will need only 1 system.
⊙ Flat concrete roof PV installation never been so simple

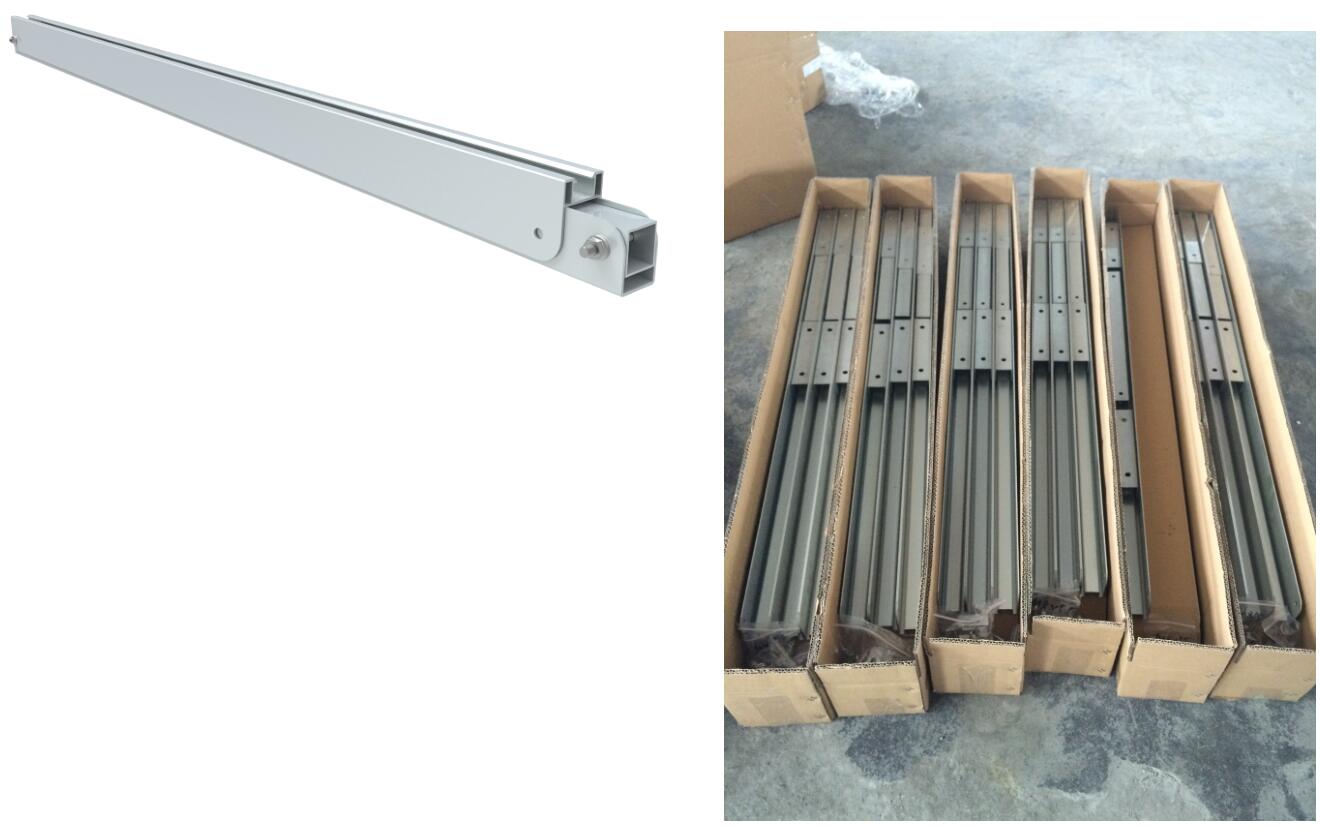

Highly Preassembled

⊙ This system is almost fully-preassembled, 6 pcs in 1 box with all necessary accessories in delivery-friendly packing.
⊙ One project with 2-3 boxes only.
⊙ Easy transporation and fast site installation has been fully considered.

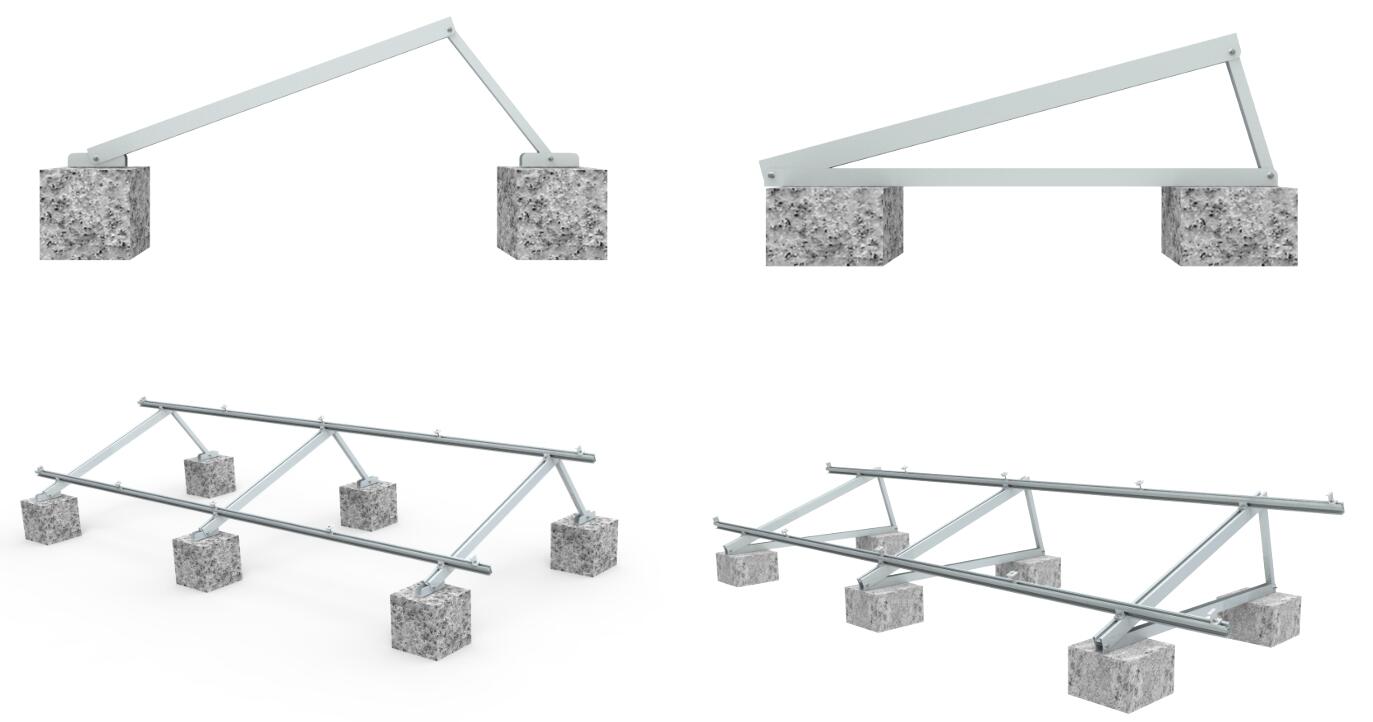

Inclination degree adjustable

⊙ 15-20 degree
      20-25 degree
      30-40 degree
⊙ Fit both 60 cell and 72cell PV modules
⊙ Custom adjustable degree available upon request

Span guide Use CK-FT-7R

Max Wind speed m/s 10 tilt degree 30 tilt degree 45 tilt degree
18 2210mm 2180mm 2180mm
22 2020mm 1980mm 1980mm
30 1720mm 1680mm 1680mm
42 1415mm 1380mm 1380mm
48 1500mm 1470mm 1470mm

Span guide Use CK-FT-6R

Max Wind speed m/s 10 tilt degree 30 tilt degree 45 tilt degree
18 2570mm 2530mm 2530mm
22 2350mm 2300mm 2300mm
30 2000mm 1950mm 1950mm
42 1640mm 1600mm 1600mm
48 1750mm 1700mm 1700mm

Typical system configuration 30m/s max wind speed
15-20 degree
20-25 degree

layout       Compo nents
  Triangle stru cture Rail Rail splice Mid clamp End clamp Grou nding lug Cable clip
1*2 2 2100 mm  *2 N/A 2 4 2 8
1*3 2 3200 mm  *2 N/A 4 4 2 12
1*4 3 4200 mm *2 N/A 6 4 2 16
1*5 4 2560 mm  *4 2 8 4 2 20
1*6 4 3200 mm  *4 2 10 4 2 24
1*7 5 3200 mm  *2 /  4200 mm  *2 2 12 4 2 28
1*8 6 4200 mm  *4 2 14 4 2 32
1*9 6 3200 mm  *6 4 16 4 2 36
1*10 7 4200 mm  *5 4 18 4 2 40

Technical Datasheet

⊙ Function : Flat roof & Ground
⊙ wind load : up to 42m/s
⊙ Snow load : 1.4KN/m 2
⊙ PV modules : Framed, unframed
⊙ Module orientation : portrait
⊙ Module inclination : 15°-20°,20°-25°,
⊙ 30°-40°or custom degree
⊙ Standards : AS 1170
⊙ Color : Natural
⊙ Warranty : 10 years

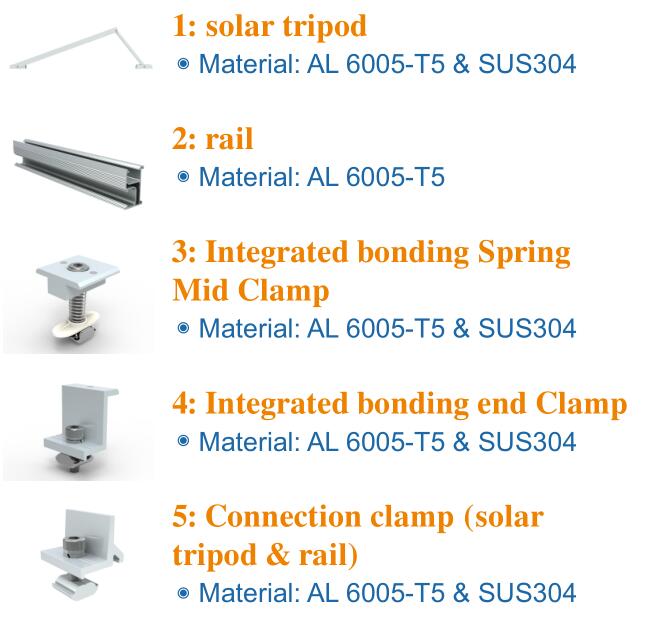

Main compnents

⊙ To make sure the max yield of the PV system, any lengths of connector can be made for different shading angles, that easy to setup every individual system.
⊙ The designed channel on the connector carries the cable in the system, so the cabling does not rest on the roof.
